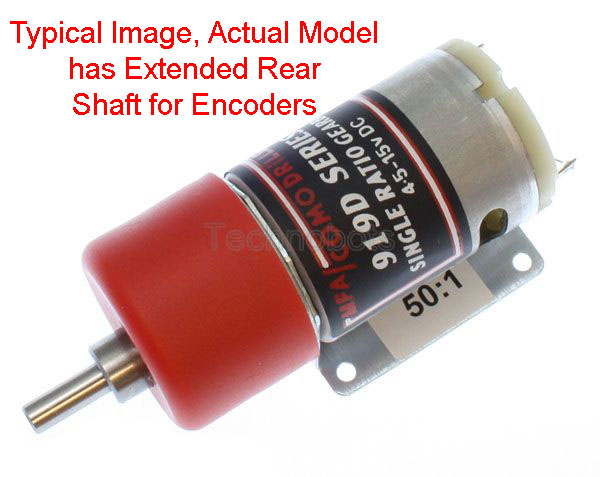

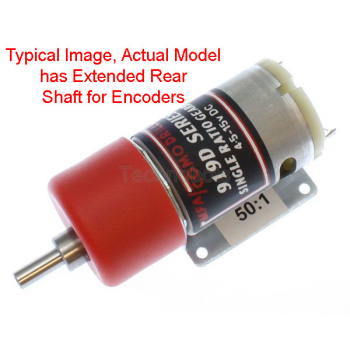

919D5001 RE 540/1 Metal Geared Motor 500:1

£17.55
(£21.06 UK, incl VAT)
Price in points: 3510 points
1450-058
290 g
In Stock
+
Add to wish list

MFA Como Drills 9195001

Output @ 4.5V 9.75rpm
Output @ 6V 14rpm, 59100g/cm at max efficiency, stall torque 335000g/cm
Output @ 9V 21.5rpm
Output @ 12V 30rpm 77200g/cm at max efficiency, stall torque 500000g/cm
Output @ 15V 37.5rpm
Figures are theoretical for motor and gearbox combination

See 'Which Wheels' tab for suitable wheels type 6T for a tight fit. As an alternative, use 6mm gear adaptor 4607-062 or mounting hub 4609-106 with suitable wheels of your choice.
